Thor400-32S for GT/ GT-S
Couldn't load pickup availability
Thor400-32S for GT/GT-S

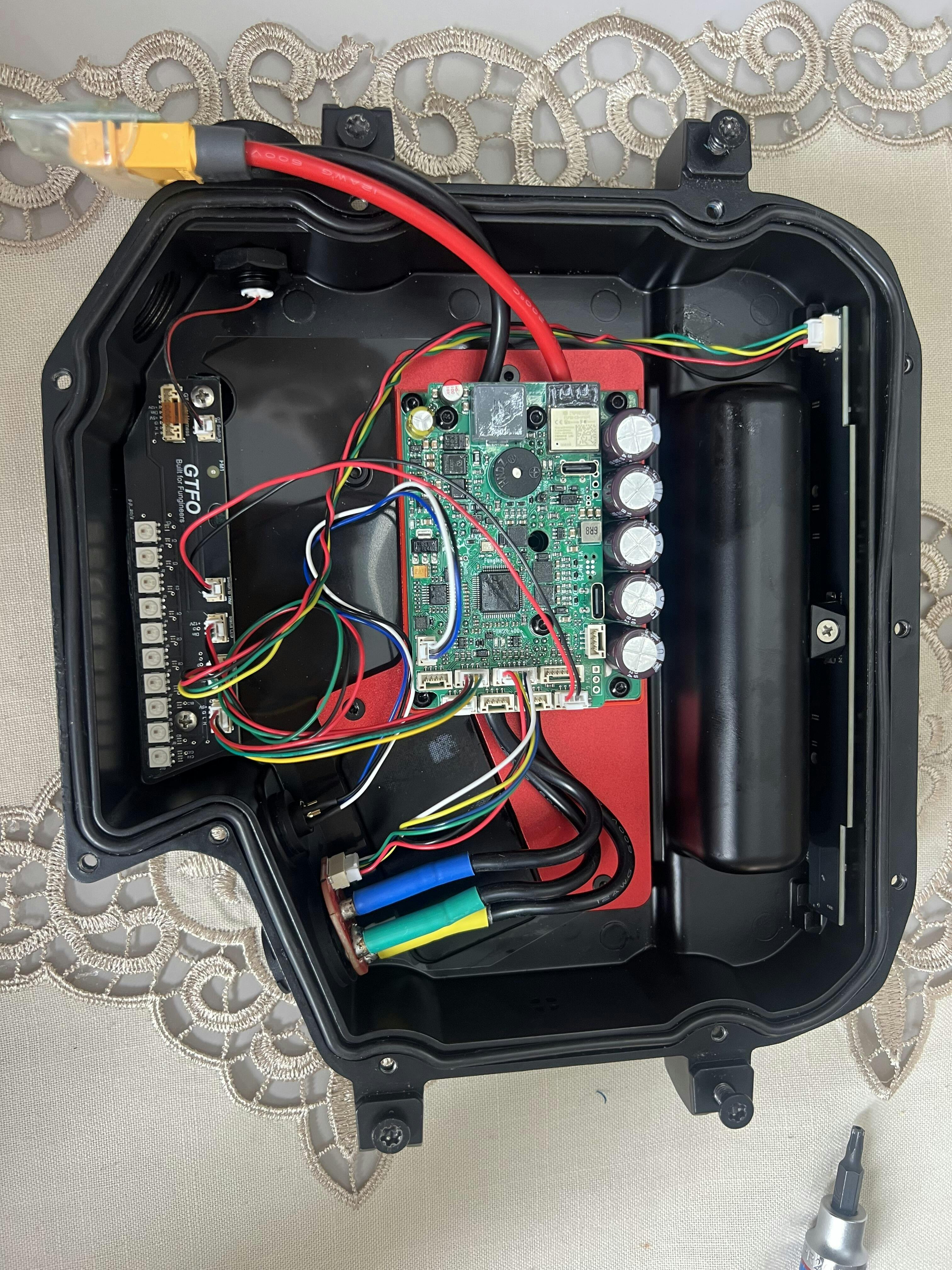

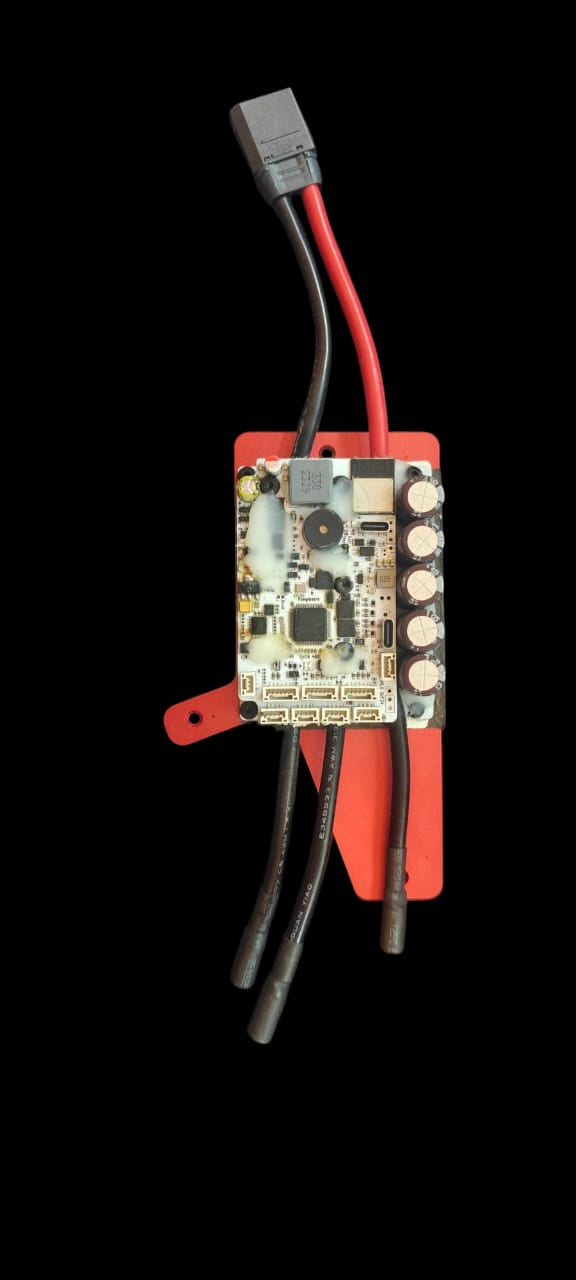

The legendary Thor400 now installed on a metal CNC plate, so that it can be directly plugged and bolted inside a GT-S box.
Please purchase the LED kit separately to be able to use the stock GT/ GT-S push button.
Requires setup of your Motor, and IMU configs in VESC tool.
See User guide.
Specifications and History of the Thor400:
December 2023: A big problem in the community - folks want to build Higher Voltage builds, but there are no suitable ESCs available..
A few months later, an e-scooter/ e-bike controller emerges that people start using for HV builds. Great controller! However, it's big, bulky, doesnt fit most connectors/ enclosures. No dedicated footpad connector/ hall sensor ports dont match, no direct LED support, etc...
Early 2024: I get on a call with our internal design team. Here's how the call goes:
Me- We want a a controller capable of 32S/ 135V, and upto 400 amps abs. max. A DEDICATED Funwheel/ VESC-wheel controller.
Designer - Sure that can be done.
Me- ...and we want it in the same space and same bolt pattern and layout as the Thor300.
Designer-..that...might be impossible...
Well, that's how it began, a lot of impossible things later, the Thor400-32S was born. Here are some mind blowing specs:
- True 32S controller (with all HV components rated to 150V! perhaps the only one in the industry...perhaps).
- Extremely expensive and reliable OnSemi Dual cool Automotive Tech FETs. We have 18 of these FETs in this extremely small package. Providing unrivaled power with TOLT/ Dual cool technology. Forget overheating controllers.
- 400A abs. max current (depending on cooling/ Fungineers box is recommended).
- Same bolting pattern and size as the Thor300. Fits in the Fungineers box and still has space for 2S2P 21700 (400A in this package is unheard of!).

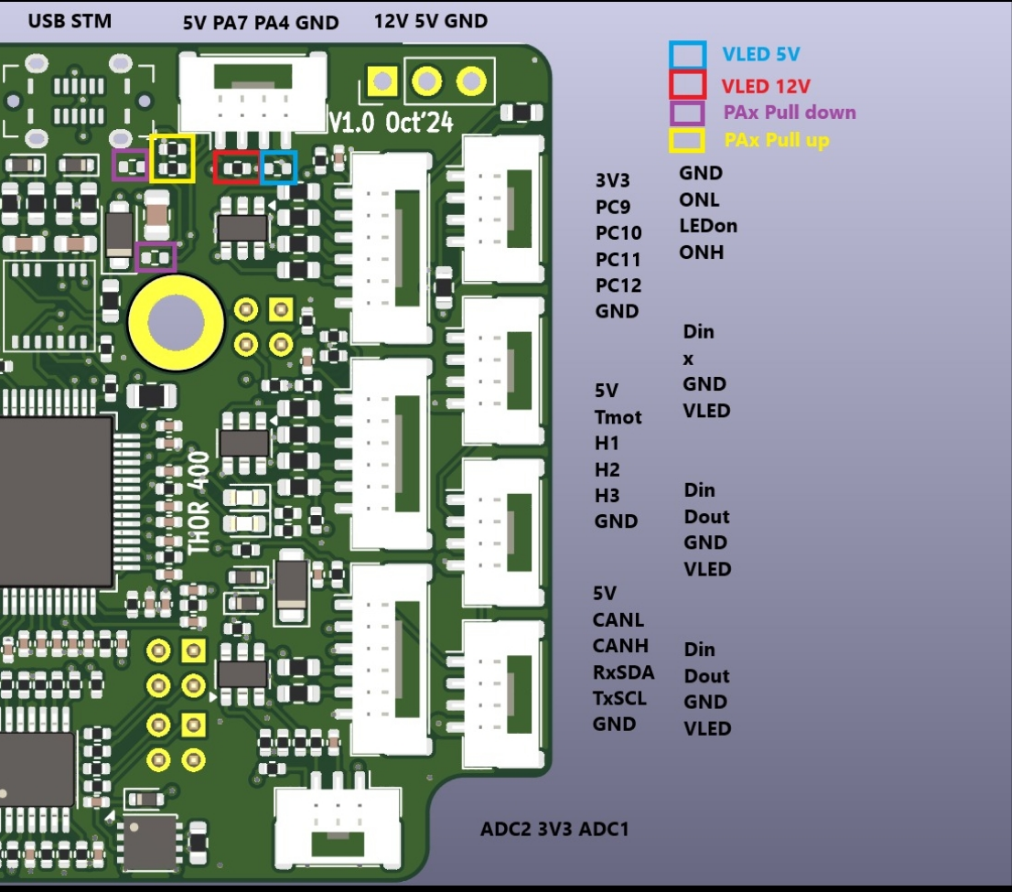

- Same onboard LED support as the Thor300 (just plug in the status, front, and rear led).
- Choice to run 5V or 12V LEDs (can be switched with a jumper!)
- ESP32 breakout pins to run additional functions.
- 12V/ 5V additional pads to run 5A (max with cooling) LEDs or other functions!
- Sin/Cos encoder Support.
- Additional temperature probe support (to monitor temperature of your split pack).
- ebike throttle support (Can be switched with a jumper).
- Roll to start: Currently in beta.
- Improved robustness and design - stronger, and more rigid than ever.
- Momentary button: Same button and pins as the Thor300, but improved hardware and logic.
- VESC Express onboard Bluetooth/ Wifi module; preconfigured.
- XT90 connector.
In short, the Thor400 is NOT for Onewheels/ Funwheels. This is an ebike/ EUC worthy Controller that will turn your Funwheel into an absolute beast; and you can be sure your Funwheel is 100% future proof with the Thor400 due to the bleeding edge features.
Stock & Shipping
Thor400s are usually stocked on the 1st of every month, and will be shipped in 2-3 days.
If you have an urgent need (have a ready battery pack and build) please email us.
