VFBMS32 (VESCxFUNGINEERS BMS)
Couldn't load pickup availability
The official VESC x Fungineers BMS:
For the first time ever, THE Benjamin Vedder, inventor of the VESC ('V' in VESC stands for Vedder) and his team have collaborated on any Funwheel/Single-wheeled/ Balance-wheel product. The VESCxFUN BMS or VFBMS32
We collaborated with Benjamin and team to design an official VESC BMS for the balance wheel world. There are 3 primary reasons that we undertook this endeavor and improved on our previous smart (Bluetooth-only) BMS.
Improved Safety:
The new charge-only VF BMS talks to your ESC via CANBUS, sending and receiving real-time data and ensuring your ride is within the safe limits. It has multiple ways of warning you, and also induce pushback if configured to do so, yet no way of forcing the board to stop, since its a charge-only BMS. The ability to reliably talk to the ESC is a huge bump in safety and put your Funwheels as the safest boards in the world.
Best-in the world premium quality stuff:
Our motor, the Superflux, and our Controllers, the Thor300 and 400 are the best in the world by a long shot, so why not also make the whole eco system the most premium, bad-ass, and safest combo in the world? This is the reason we collaborated with the Mr. Vedder and team to bring you the best hardware and software, and ensure everything works seamlessly together, and you get the most premium and reliable parts that will keep you on top of your game on any terrain or ride!
Support VESC!
Since Benjamin decided about a decade ago to have VESC as open-source, and free for everyone, there have been 100s of companies that have benefitted from his work for free (including us with our ESCs!), without much monetary attribution in most cases to Benjamin's VESC company. With the official VESC BMS, every BMS you buy, you will be supporting the VESC team directly!
Specifications:
- 12-32S official VESC BMS (yep, one single BMS for all cell configurations, up to 32S!)
- Charge-Only BMS (no fear of cut-outs).
- CAN connection to VESC (talk to VESC, and ensure safety; induce beeps, pushback, etc. when necessary).
- Bluetooth and WIFI connection (secondary connection options!)
- Official support of Firmware and updates from the VESC team.
- 130 X 32 mm only; fits XR boxes and original Fungineers enclosures as well
- Max Charge: 12A
- Overcharge, Undercharge protection: Configurable in VESC.
- Balance parameters: Configurable in VESC.
- Cell balance Current: 100mA
Includes:
1x VESC / Fun BMS
1x set of JST connectors to connect (solder) to cells. Up to 32S provided. Please solder as per pinout below.

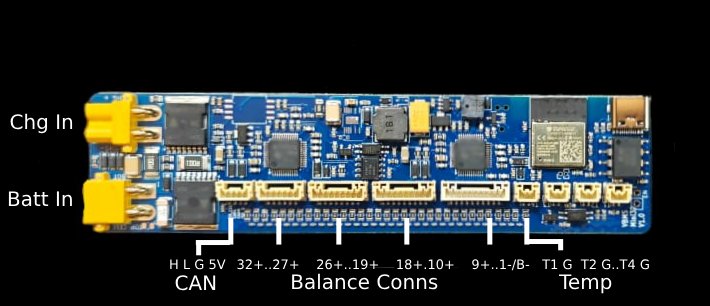

Wiring Diagram:
As per the product picture
Customer Reviews
I paid full price for this BMS, which is expected. 250$ I believe, when I received my order I was missing the “included” wiring and thermistor. Hard to install with out that, I emailed fungineers, they responded quickly with a reply saying they’d send it out as soon as it was available… this didn’t inspire a lot of confidence with me, so I ordered my own leads from Ali express. Nearly a month later, I haven’t received the wiring AND I’ve followed up with them. -1 star there.
Next was the BMS. Design wise, it’s larger than the competitors similarly priced smart 32s BMS. Whatever… this time it wasn’t an issue. Smaller than cheaper BMS, so we’ll say medium sized. The whole “short the cells you aren’t using” paired with almost no documentation is frustrating, but fortunately for me, I’ve was doing a 32s install. Next thing…I’ve got 1 temp sensor installed, I input that I’ve got 1, it reads said sensor. It also reads the two BMS temp sensors; all good right? Well it’s also showing 3 other temp sensors at -25*c, another at -300*c. It’s more than a visual annoyance, you have to set your allowable bottom end charging below the -25*c to allow charging, this just bypasses a safety feature, don’t love that either. At least you can bypass the min temp with a toggle in the settings, hilarious. -1 star
At this point you might be thinking, this is only a true 4star BMS if you remove the Customer service aspect right? Well there is one more insanely annoying feature this BMS has, and it gets its own star… the beeping. When it’s fully charged, plugged into the charger, AND you aren’t connected to the app, it double beeps, about every 2-3secs. Sure I’ve built at least a dozen, if not more, vesc boards, and I can live with it. But if this was a customers board, the constant questioning and anxiety this would create is why it gets its own star… -1 star.
2 star rating from an experienced builder, for a 250$ BMS… probably should avoid this one and pick up a 4v dionne BMS
Super accurate and the best on market not only for Funwheel

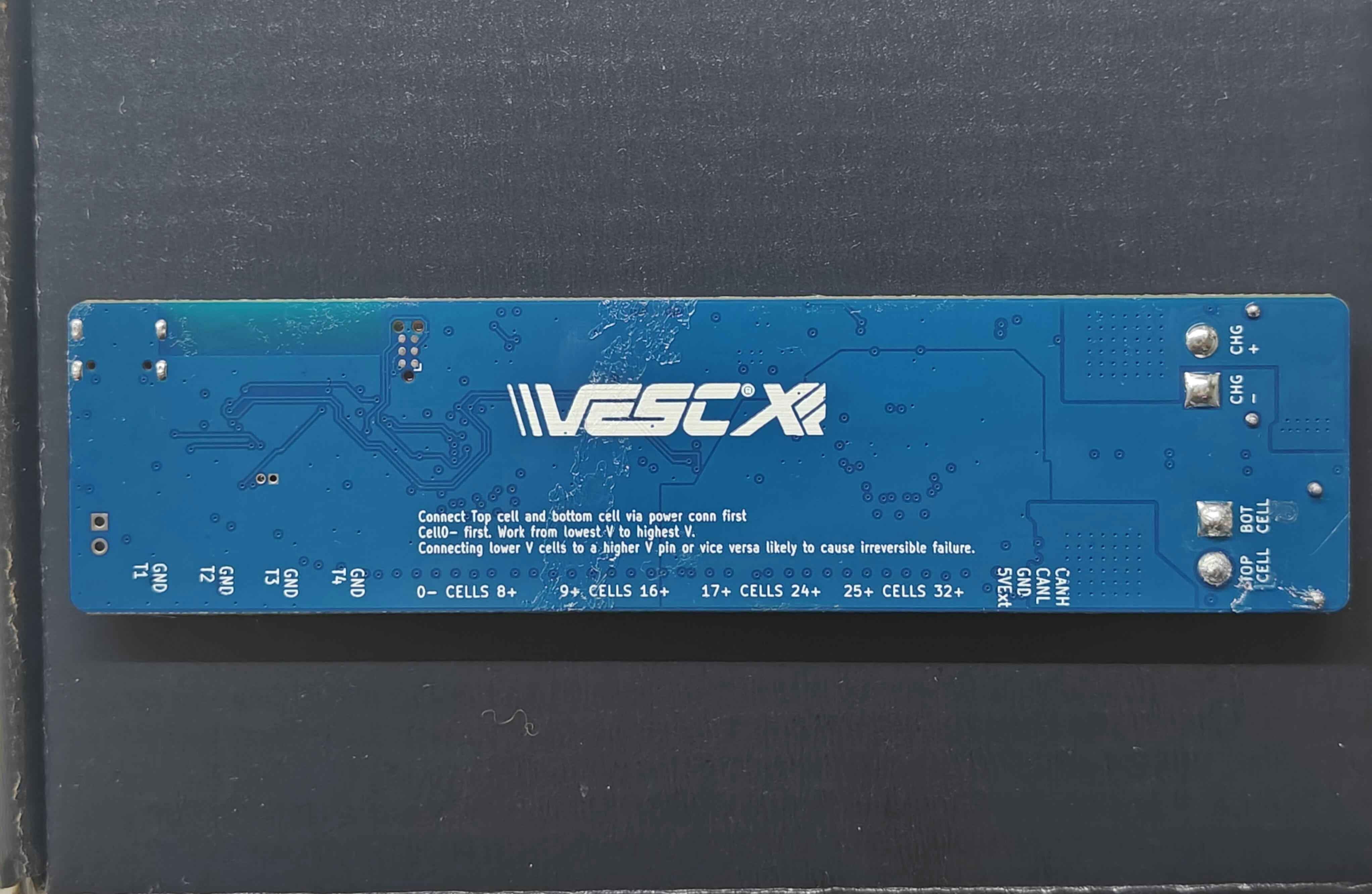

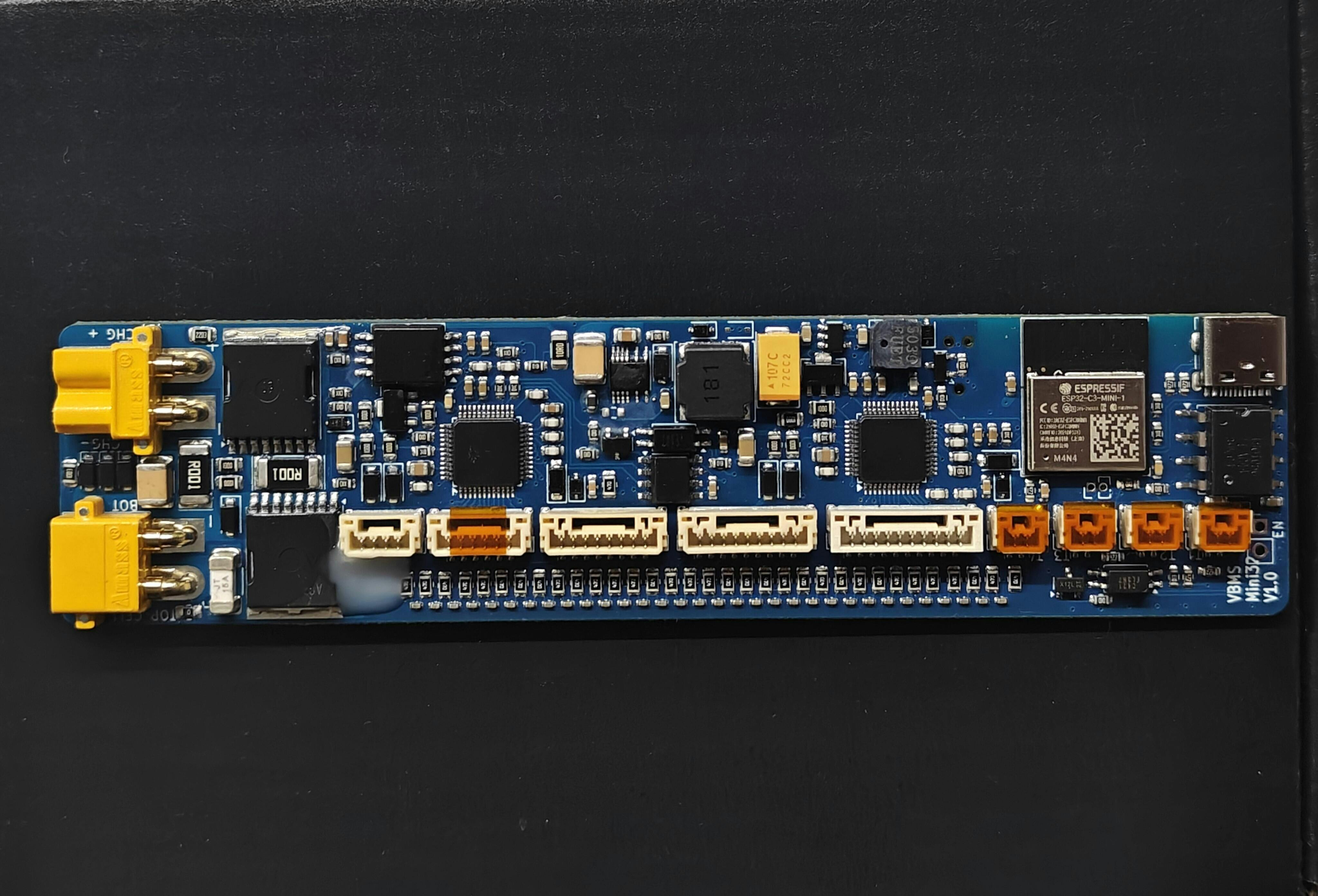

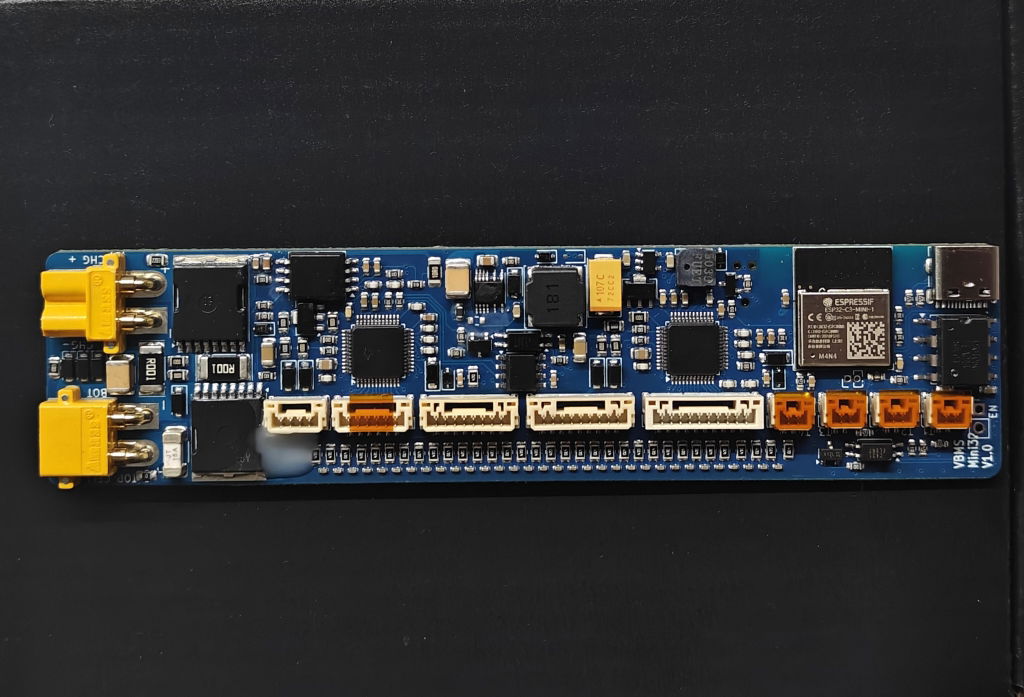

Check photos
