High Voltage Powertrain - Complete Thor400 Controller + 32S1P Battery box

Shipping time
Shipping times calculated at checkout.
A complete X7 Supercharged Ready to Ride Board can also be purchased here


Includes

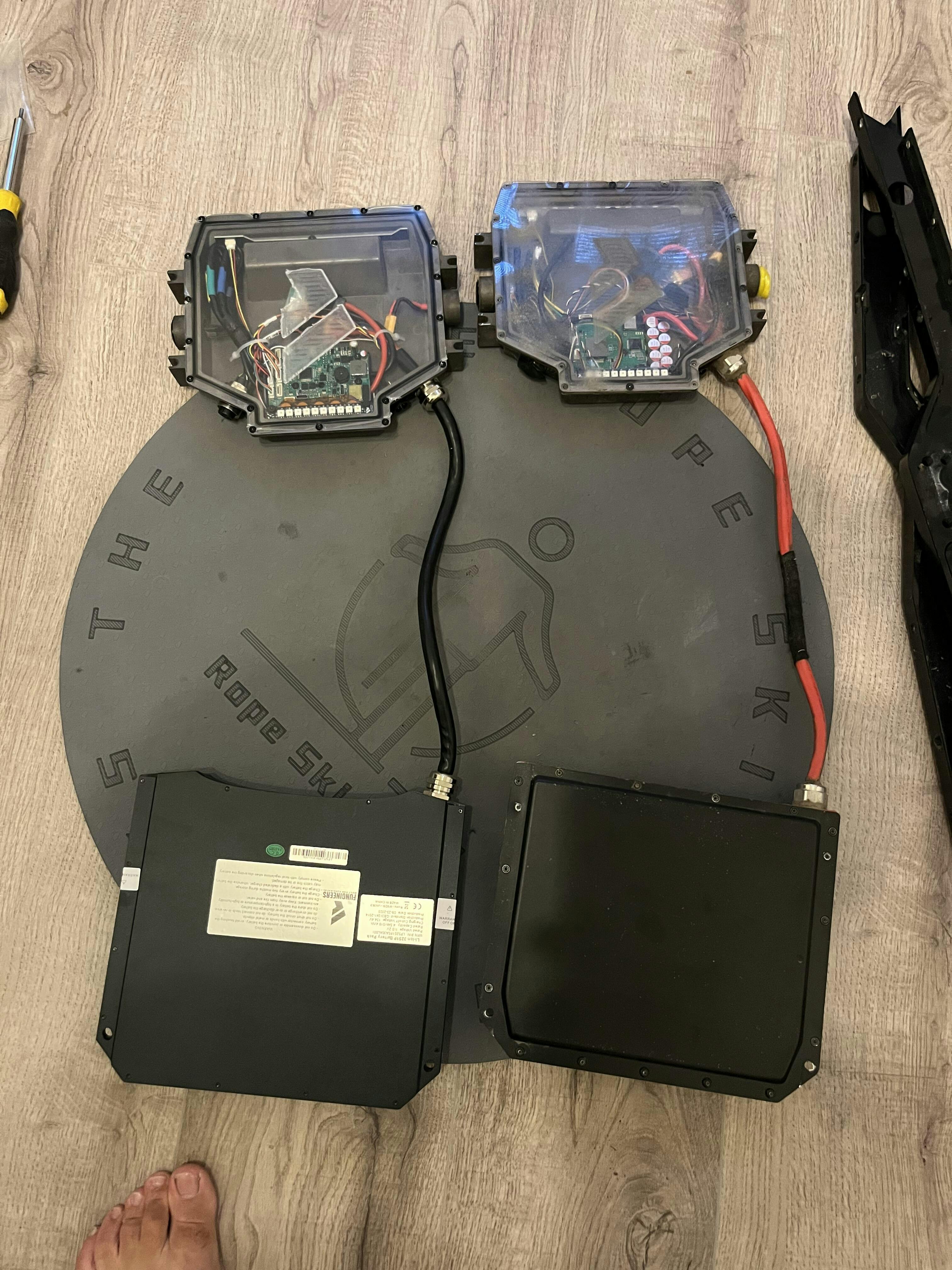

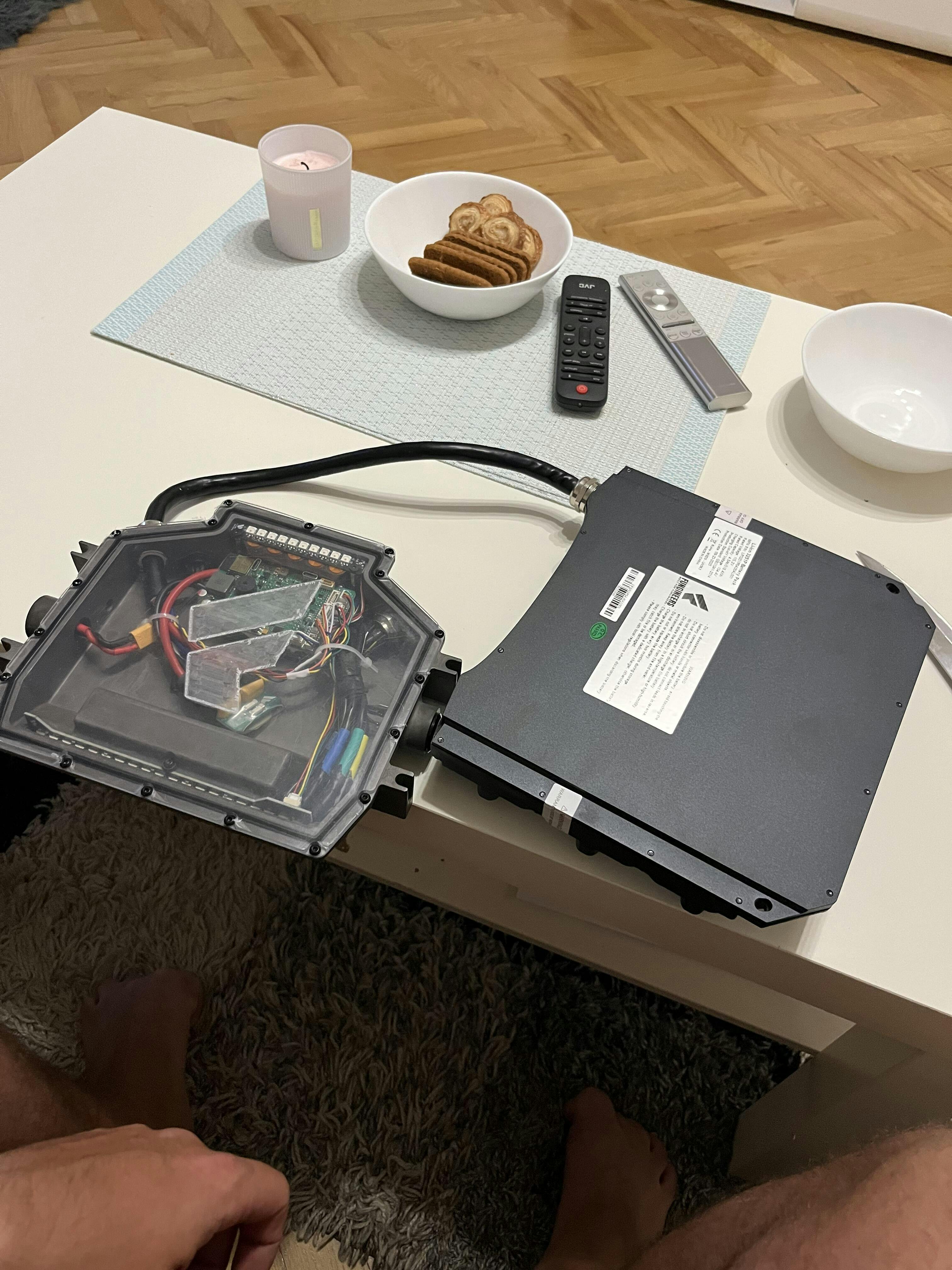

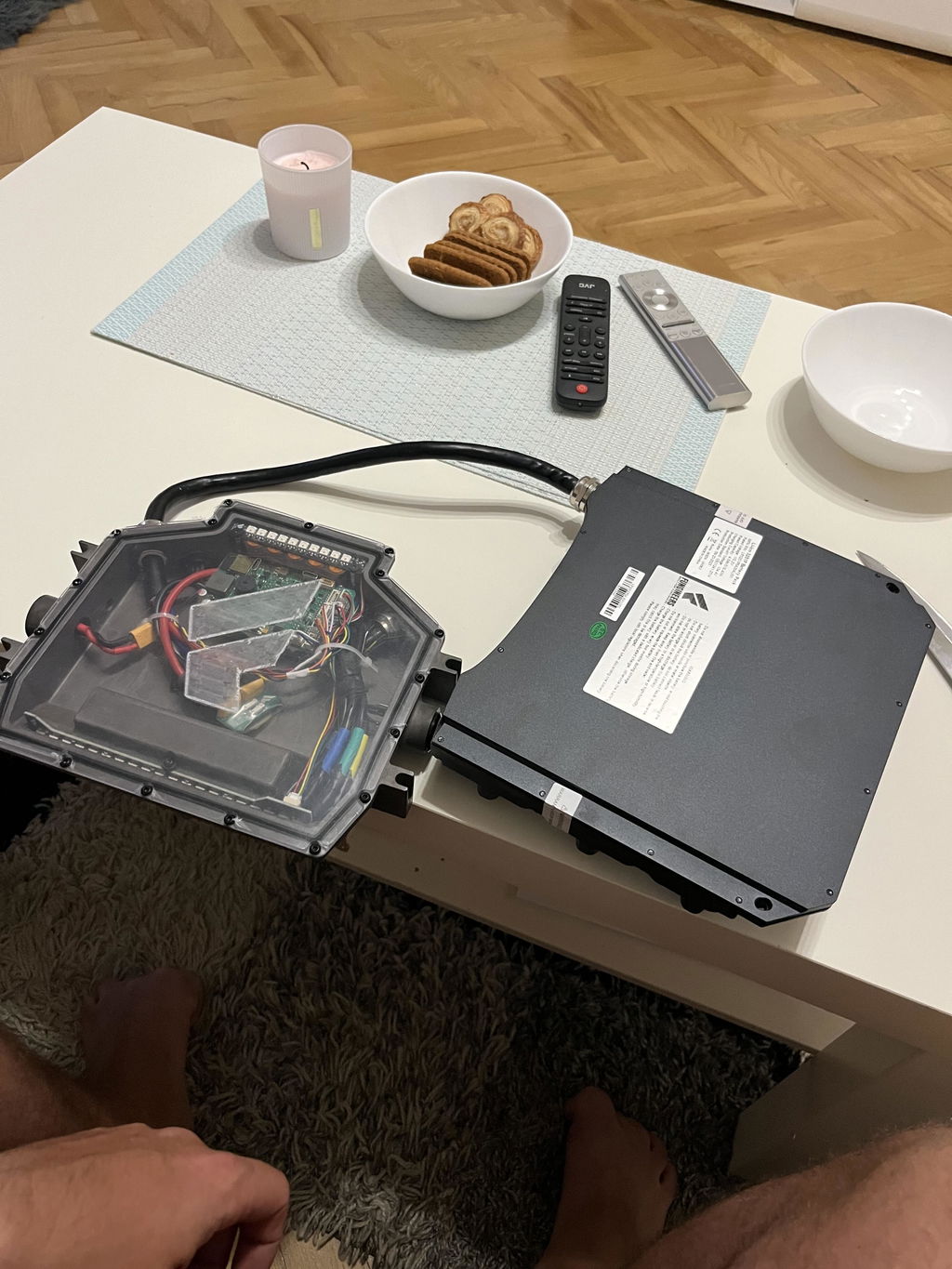

Thor400 Controller box + Battery Box connected together.

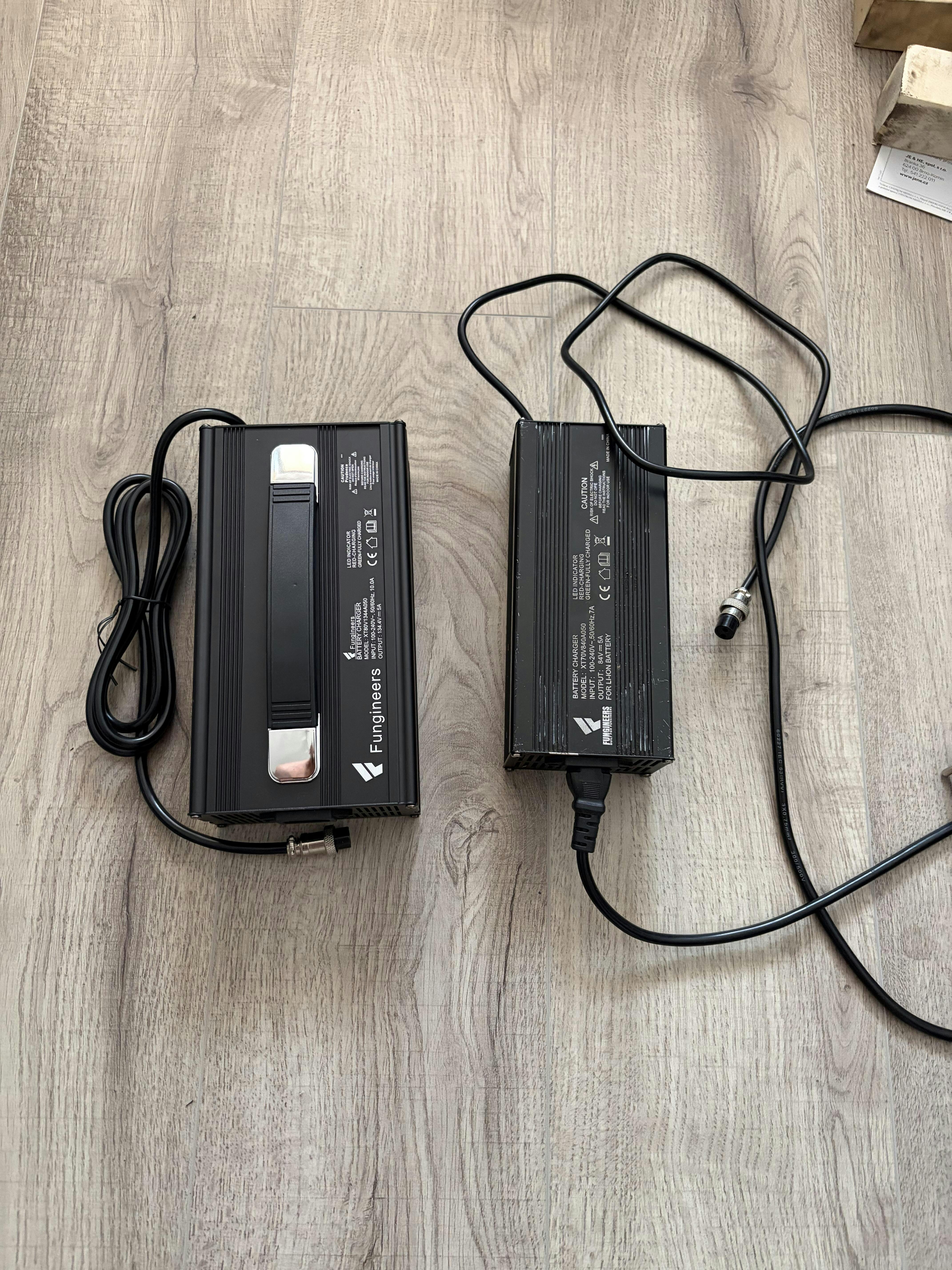

134V 5A charger.
Rails shown in the pictures are not included as part of the Powertrains.

Knowledge Base Article

Description

The Fungineers High Voltage Powertrain is a fully assembled, ready-to-install unit combining the Thor400 controller and a 32S1P 21700 Molicel P45B battery box. Both units come pre-assembled, sealed, and water resistant — no wiring, soldering, or internal modifications required. Simply mount the powertrain into any XR format rails, install your motor, bumpers, and footpads, and complete board setup using the included user guide.

Compatible with any XR format board including X7, X10, Thunder rails, and original or aftermarket XR rails, bumpers, and footpads.

Specifications

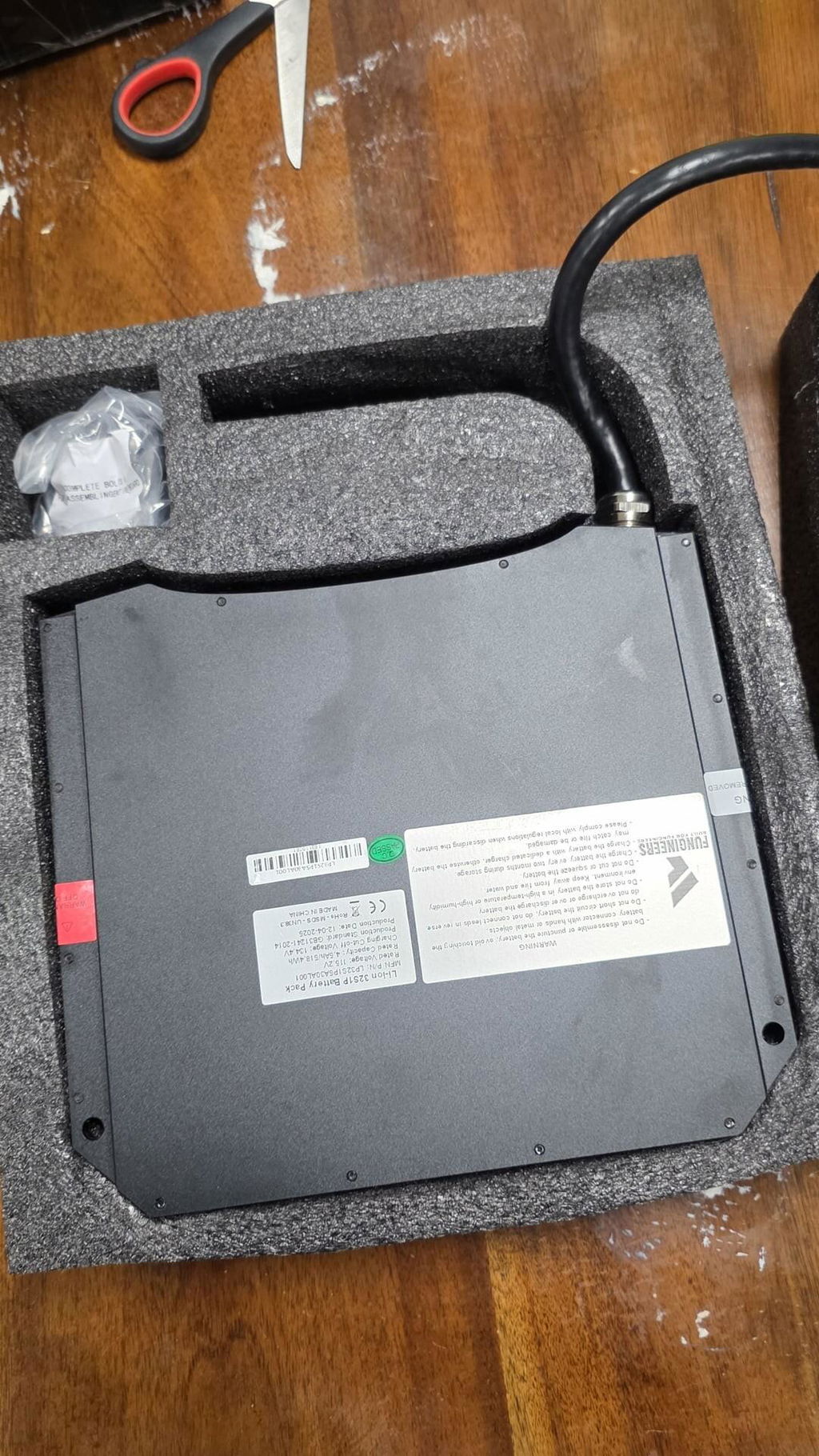

Battery Specifications: Molicel P45B 21700 32S1P configuration. Managed by an official VESC BMS for maximum safety and reliability. The battery box is fully sealed and water resistant. It is connected to the controller box and should not be separated.

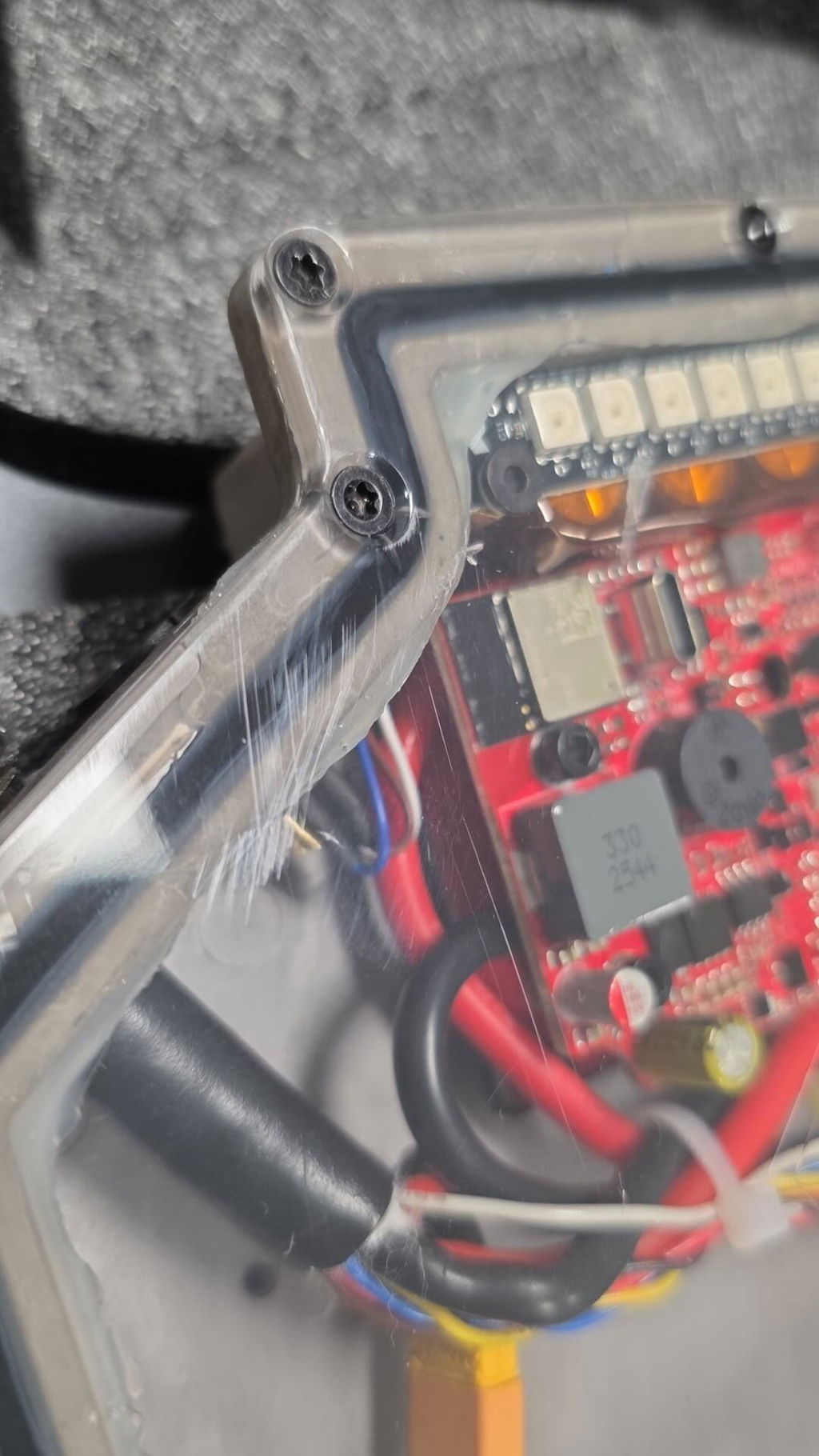

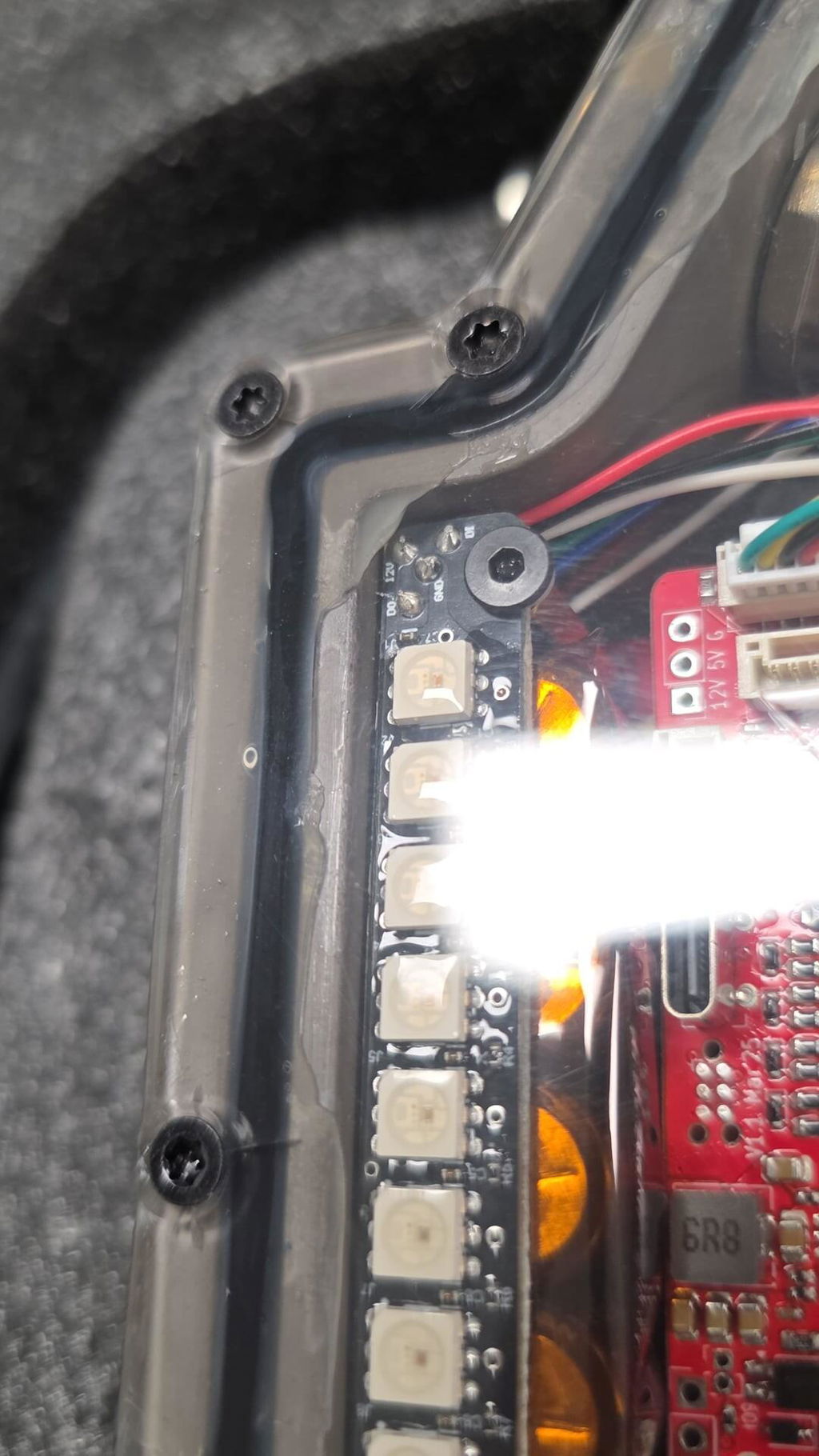

Controller Specifications: Thor400 Controller rated at 400A absolute max. Housed in the Fungineers die-cast enclosure with integrated connectors and LEDs. The controller box is connected to the battery box, sealed, and water resistant. The two units should not be separated. Includes a 134V 5A fast charger — please do not purchase an additional charger.

Motor Connector: The powertrain uses the Superflux 9-pin connector system. The female connector is included and pre-installed on the controller box. It features 3x 4mm banana connectors and a 6-pin JST GH 1.25mm connector, rated for over 100A continuous current and 500V. No additional connector purchase is needed.

Harness: The wiring harness is extendable to accommodate BTG and other rail size variants.

Assembly

Mount the powertrain to any XR format rails, install the Superflux motor, attach footpads and bumpers, and configure the motor and IMU settings using the provided user guide.

Warranty

This product comes with a one year warranty. Due to the nature of high voltage systems, the controller and battery boxes must not be opened without professional guidance. Customers retain full right to repair and install the unit in their preferred rails. If you intend to open either enclosure for any reason, please contact us beforehand so we can ensure the process is done safely and your warranty remains valid.

Please note that water or moisture ingress is not covered under warranty. These units are water resistant, not waterproof. Riding in wet or adverse conditions is done at your own risk — please take appropriate precautions to protect your powertrain from exposure.

Notes

Rails not included.
Standard Bang bumpers are not compatible. Fungineers bumpers or Torque Bang bumpers (for torque box) are required.
This system uses metric M5 screws. Imperial 10-32 screws are not compatible — using mismatched screws from other vendors may damage threads.
